- 89系列壓力傳感器中英文產品介紹
- 來源：賽斯維傳感器網 發表于 2014/6/12
Applications: Hydraulic Controls, Process Control, Process Calibrators, Refrigeration/Compressors

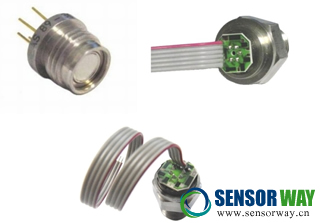

Description: The 89 series is a small profile, media compatible, piezoresistive silicon pressure sensor packaged in a 316L stainless steel housing featuring 5/16-32 UNEF threads and can be welded in place. The 89 is designed for high pressure OEM applications where compatibility with corrosive media is required. The sensing package utilizes silicone oil to transfer pressure from the 316L stainless steel diaphragm to the sensing element.
Features:
Weldable and Threaded Process Fittings or O-Ring Mount
-40°C to +125°C Operating Temperature Range
±0.25% Pressure Non Linearity
Solid State Reliability
典型應用: 液壓控制，過程控制，過程校準器，制冷/壓縮機
產品描述: 89系列是一款小型硅壓阻壓力傳感器，兼容多種介質，316L不銹鋼封裝，帶5/16-32 UNEF螺紋連接頭，并可焊接安裝 。產品采用O型圈密封，專為測量腐蝕性介質的高壓應用而設計。施加在316L不銹鋼膜片上的壓力通過硅油傳導至傳感元件。
特點:
焊接安裝/螺紋過程連接頭/O型圈密封
-40℃ ~ +125℃工作溫度范圍
±0.25%非線性
固態結構
89系列壓力傳感器更多技術參數及規格書下載請瀏覽：http://m.gregorylane.net/sensors/649.html
北京賽斯維測控技術有限公司產品咨詢熱線：010-84775646，84775648。
