- ELHM力傳感器中英文產品資料介紹
- 來源：賽斯維傳感器網 發表于 2014/6/16
Applications: Theatrical Rigging Loads, Assembly Forces, Weighing, Tool Forces, Thrust Measurements, Demanding Longer Term Measurements, Product Validation Testing, Material Test, Hoist and Winch Loads
Industries: General Industry

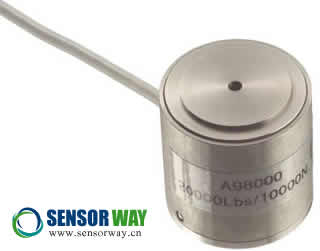

Description: The ELHM load cell is a compact package able to fit into many applications where others cannot. The low noise Wheatstone bridge consists of metal foil strain gages which provide typically 2 mV/V of full scale output. When compact design and superior stability are required, the ELHM load cell is the sensor for your application. The ELHM is provided with either SAE or metric threads for tension and compression applications. Care should be exercised to isolate your ELHM from off-axis loads. The ELHM is a Poisson column design providing low full scale input deflection and superior stability for longer term measurements. Designed specifically to provide high zero stability, the ELHM is rated for a cycle life expectancy of typically 1x106 0-FS cycles of zero to full rated load. The ELHM can be configured with a variety of different options to fine tune the instrument to your application: select from several standard compensated temperature ranges, input voltages, lead lengths or specify entirely unique combinations of these options.
Features:
Ranges: from 500 to 10,000 lbf
Ultra compact button or threaded stud design
Millivolt output: 2 mV/V nominal
High stability
Compression or tension/compression
Low mass compression style or tension compression with studs
Low noise
High reliability
典型應用: 繩索負載，裝配力，稱重，工具受力，推力測量，長期測量，產品驗證測試，材料測試，絞車和起重機負載
產品描述: ELHM力傳感器的小型封裝使其適用于很多不同的應用。產品采用金屬箔應變片惠斯通電橋，滿量程輸出的典型值為2 mV/V。ELHM是需要小型封裝和高穩定性應用的理想選擇。拉壓力傳感器可選英制或公制螺紋。使用過程中應避免非軸向負載。ELHM采用泊松柱形設計，滿量程輸入偏差小，穩定性好，適合長期測量應用。ELHM零點穩定性好，使用壽命為一百萬次（0 ~ 滿量程）�？蛻艨筛鶕�(jù)應用配置最適合的ELHM：可選的溫度補償范圍，工作電壓，輸出電纜長度。
特點:
量程：500 ~ 10,000 lbf
螺栓式或紐扣式
毫伏輸出：2 mV/V 典型值
高穩定性
拉壓力或只有壓力
低噪聲
高可靠性
ELHM力傳感器更多技術參數及規格書下載請瀏覽：http://m.gregorylane.net/sensors/128.html
北京賽斯維測控技術有限公司產品咨詢熱線：010-84775646，84775648。
