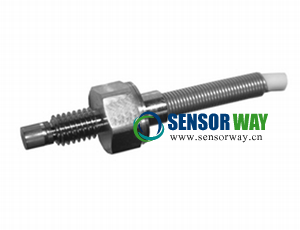

- XPM6小型壓力變送器中英文產品介紹
- 來源：賽斯維傳感器網 發表于 2014/6/10
Applications: Explosion test benches, Extreme miniature devices, Robotics and actuators, Breaking system pressure, Laboratory and research
Description: The XPM6 is a miniature transducer designed to measure static and dynamic pressure under a wide variety of conditions, including hostile environments. It is made of stainless steel and is available in ranges from 0-100 to 0-1000 bar [1500 to 15 000 psi]. Option “MH” provides extra protection against temperature flashes up to 1000 ° C [1832 ° F]. The XPM6 incorporates Measurement Specialties’ cutting edge SanShiftTM technology, which virtually eliminates zero shifts caused by installation torque. The XPM6’s sensing element is a fully temperature compensated Wheatstone bridge made with high stability micro-machined silicon strain gauges. With many years of experience as a designer and manufacturer of sensors, Measurement Specialties, Inc. has the expertise to customize and/or design sensors for specific uses and testing environments. To meet your needs we also offer complete turnkey systems. Our conditioning electronics can power the sensor, amplify the electronic signal, and display the data digitally. A turnkey measurement system arrives with matched components, formatted, calibrated and ready for your immediate use.
Features:
M6 thread
Flush diaphragm
For static and dynamic applications
High level tension output available
Low installation torque sensitivity
典型應用: 爆炸測試，超小型設備，機械人，剎車系統，實驗室和研究
產品描述: XPM6小型壓力變送器用于包括惡劣環境等多種工況下的動態和靜態壓力測量。傳感器采用不銹鋼結構，標準量程從0~100到0~1000bar（1500~15000psi），“MH”型可提供高達1000℃的瞬間溫度保護。XPM6結合了MEAS最新的SanShift技術，幾乎可以消除由于安裝扭矩帶來的零點漂移。傳感器的核心感應元件是一組金屬應變片組成的惠斯通電橋，經過溫度補償。作為擁有多年經驗的傳感器設計和制造商，MEAS常常與客戶合作，按要求定制適合特殊用途和測試環境的傳感器。同時，我們也根據客戶需要提供成套系統。配套元件（傳感器，電源，放大器和數顯系統）配置統一，經過校正，可供客戶立即使用。
特點:
齊平膜
低安裝扭矩靈敏度
M6螺紋
可選放大輸出
靜態和動態測量
XPM6小型壓力變送器更多技術參數及規格書下載請瀏覽：http://m.gregorylane.net/sensors/567.html
北京賽斯維測控技術有限公司產品咨詢熱線：010-84775646，84775648。
